Acewell ACE-7659 – Digital Dash – FREE SHIPPING

R 2,650.00

Description

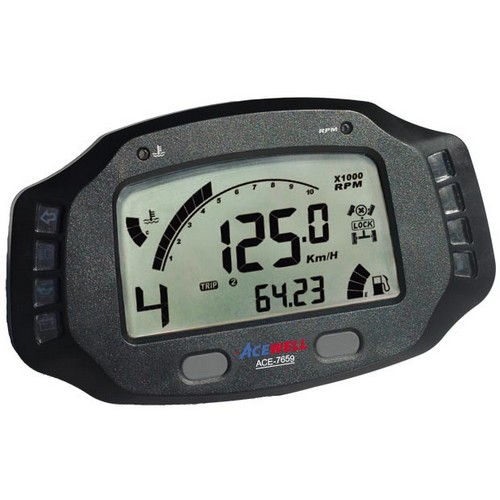

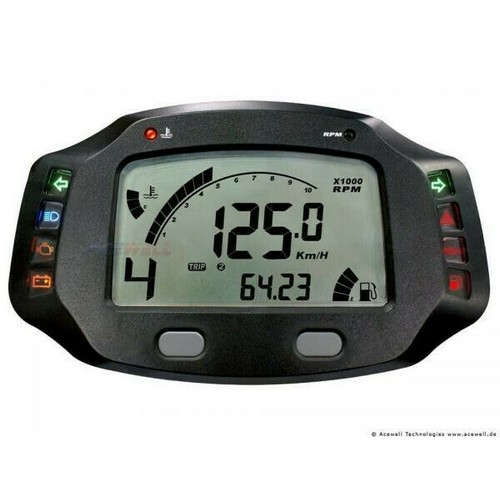

Acewell ACE-7659 – Digital Dash

FREE SHIPPING OF YOUR ACEWELL ACE-7659 TO ANY CLICKS STORE NATION WIDE – SELECT DURBAN COLLECTION FOR SHIPPING METHOD UPON CHECKOUT AND EFT AS YOUR PAYMENT METHOD.

The Acewell ACE-7659 simultaneously displays tachometer, speedometer, fuel gauge, bar-graph temperature meter, gear indicator & 4×4 symbol.

The extra temperature sensor input can be used to add a sender to show oil temperature if required or measure ambient air.
Warning lamps meet requirements of IVA / MSVA / MOT test
4×4 symbol can be switched on when 4 wheel or diff-lock drive selected, switched off by default and not visible
Compatible with both car and motorcycle PETROL engined vehicles
Gear indicator calculates gear by comparing speed and RPM on manual gearbox cars, so no additional sensors are required
0-60 timer, 60-0 timer, 0-1/4 mile timer

Demo Video :

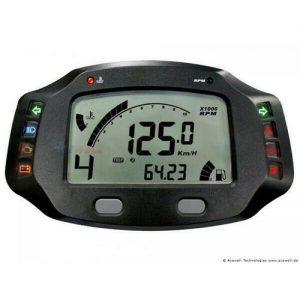

Acewell ACE-7659 - Digital Dash

Acewell ACE-7659 Features:

  • Digital Speed Readout (SPD)
  • Maximum Speed Display (MAX SPD)
  • Average Speed Display (AVG)
  • Odometer (ODO)
  • Trip Meter
  • Clock
  • Resettable Riding Timer (RT)
  • Non-resettable Riding Timer (TT)
  • Resettable Engine Hour Meter (HRT)
  • Engine Hour Meter (HRTT)
  • Maintenance Reminder
  • Temperature Gauge
  • Temperature Sensors
  • High Temperature Warning Lamp
  • Warning Lamps
  • Warning Symbols Backlit
  • Gear Indicator
  • Acceleration / Deceleration Timer
  • Digital Rev Counter
  • Programmable Shift Light
  • Bar Chart Rev Counter
  • Voltmeter
  • Bar Chart Fuel Gauge
  • Back light
  • Battery Charge Warning
  • Waterproof Computer
  • Plastic Case
  • Enter Odometer Reading When New
  • EMI/EMS Tested CE And E-Marked
  • Vibration (8G) And Mechanical Shock (100G) Tested.

warning lamps

Positive switchingNegative SwitchingProcessor controlledLCD symbols



Features

Specification

Model NumberACE-7659
Digial Speed Readout (SPD)0 – 248MPH / 400Km/h
Maximum Speed Display (MAX SPD)0 – 248MPH / 400Km/h
Average Speed Display (AVG)0 – 248MPH / 400Km/h
Max Speed Sensor Input Frequency7KHz (reed sensor / hall sensor / cable drive / electronic gearbox speed sensors)
Odometer (ODO)0-999,999 km / 0-624,999 miles
Trip Meter2 trips, 0-999 km / 0-625 miles
Clock12 / 24 hour clock, also displayed when ignition is off
Resettable Riding Timer (RT)0 – 99h 59min 59sec
Non-resettable Riding Timer (TT)0 – 9999h 59min
Resettable Engine Hour Meter (HRT)0 – 9999h 59min
Engine Hour Meter (HRTT)0 – 9999h 59min
Maintenance Reminder0-99H59’59” / 100H-999H59′ / 0-10000km / 0-6000Miles
Temperature Gaugemaximum 160c / 320f
Temperature Sensors1 Engine
Warning Lamps10
Gear Indicator1-8, N, R, P
Digital Rev Counter0-20,000 RPM
Bar Chart Rev Counter0-10,000 / 0-20,000 RPM
Operating Power12v (DC, Negative earth)
Voltmeter8v-18v
Bar Chart Fuel Gauge Input Resistanceoff / reserve / 0-1000 config
Back lightBack light and power switched independently
Battery Charge WarningUndercharge and overcharge warning
Connector Plugs110 series
Plastic Case Dimensions170mm x 100.5mm x 30mm
Caseblack plastic case
Power Onignition key
Enter Odometer Reading When Newodometer distance can be altered when the number displayed is less than 30km or 18 miles, once this number is exceeded the distance is locked in memory and cannot be altered
Compatible Wheel Size1-3999mm

Included in the box

  • Head unit
  • 1 x Temperature Sensor
  • Mounting Kit: stainless steel nuts, washers, anti vibration washers
  • Speed Sensor: Reed sensor or hall sensor options
  • Mating multi-pin plugs and cables to solder / crimp into bike wiring (pigtails)
  • Operating Instructions
  • Wiring diagram
